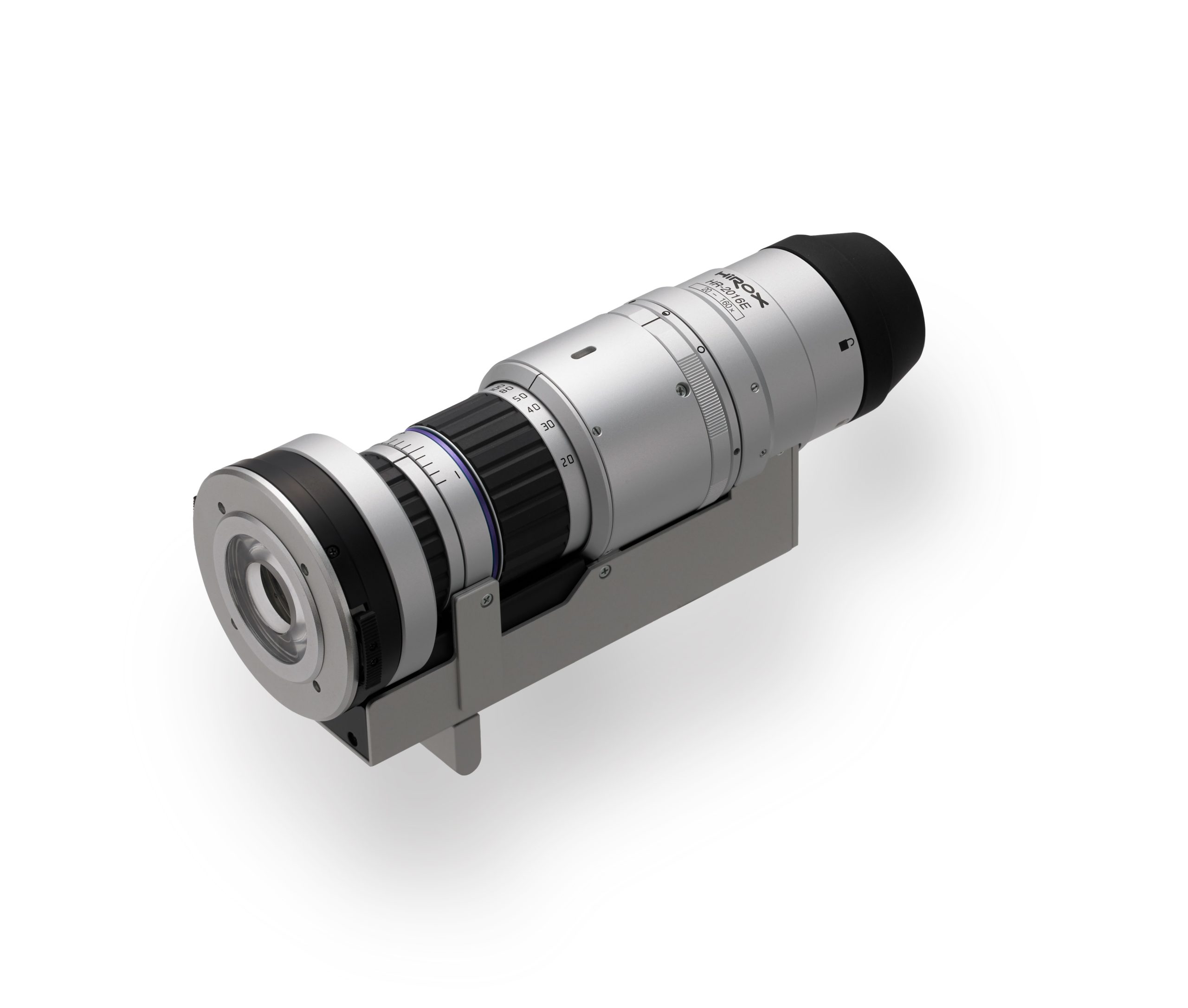

Low-Range Motorized Zoom Lens
HR-2016(E)
20x up to 160x Magnification (6x to 320x with adapters)
Patented Rotary Head Compatible
Compact Body with a wide range of adapters
Available in both Motorized and Manual versions
This high-performance zoom lens features compact body and high resolution image covers a total magnification range from 6-320x, while offering a large optical depth of field.
This lens can be used as handheld in contact or have a working distance over 130 mm depending on the adapter.
The automatic recognition and new magnetic mounting system allow quick change of adapters, including the world’s famous Hirox Rotary Head, covering a very wide range of applications
| Standard | Low Mag | High Mag | |
|---|---|---|---|
| Magnification | 20x-160x | 6-48x | 40-320x |
| Working Distance | 44 mm | 132 mm | 20 mm |
| Horizontal View | 15.4-2.0 mm | 50.8-6.35 mm | 7.62-0.95 mm |
| Depth-of-Field | 13.3-0.25 mm | 170.45-4.20 mm | 3.02-0.10 mm |
| Adapter Recognition | Yes | ||
| Motorization | Zoom / Rotary-Head |
Adapters

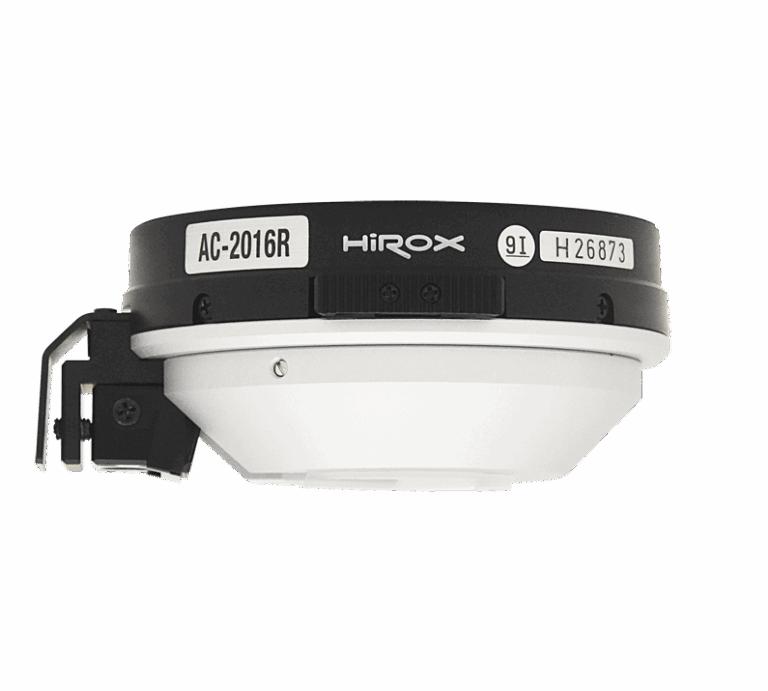

360° Rotary Head Adapter, Hirox Exclusivity!
Magnetic and Automatic Recognition
360° rotary inspection without contact or sample moving.
45 Degree angle view.
Lighting Method: Dark field vertical lighting
Diffuse lighting adapter included
Magnetic and Automatic Recognition
360° rotary inspection without contact or sample moving.
45 Degree angle view.
Lighting Method: Dark field vertical lighting
Diffuse lighting adapter included
Non Contact Adapter
Included with the lens
Magnetic and Automatic Recognition
Lighting Method: Dark field vertical lighting
Working Distance: 44 mm
Included with the lens
Magnetic and Automatic Recognition
Lighting Method: Dark field vertical lighting
Working Distance: 44 mm
Contact Adapter
Magnetic and Automatic Recognition
Lighting Method: Variable angle lighting
Working Distance: 0 mm
Magnetic and Automatic Recognition
Lighting Method: Variable angle lighting
Working Distance: 0 mm
Variable Working Distance Diffuse Lighting Adapter
Magnetic and Automatic Recognition
Lighting Method: Diffuse Lighting
Magnetic and Automatic Recognition
Lighting Method: Diffuse Lighting
Diffusing Adapter for 3D Rotary Head adapter
Magnetic and Automatic Recognition
Lighting Method: Diffuse Lighting
Working distance: 11mm
Magnetic and Automatic Recognition
Lighting Method: Diffuse Lighting
Working distance: 11mm
High Magnification (2x) Adapter
Magnetic and Automatic Recognition
Magnification: 40x to 320x
Lighting Method: Dark field vertical lighting
Working Distance: 20 mm
Magnetic and Automatic Recognition
Magnification: 40x to 320x
Lighting Method: Dark field vertical lighting
Working Distance: 20 mm
Diffuse Lighting Adapter for High Magnification (2x) Adapter
Magnetic and Automatic Recognition
Magnification: 40x to 320x
Lighting Method: Diffuse lighting

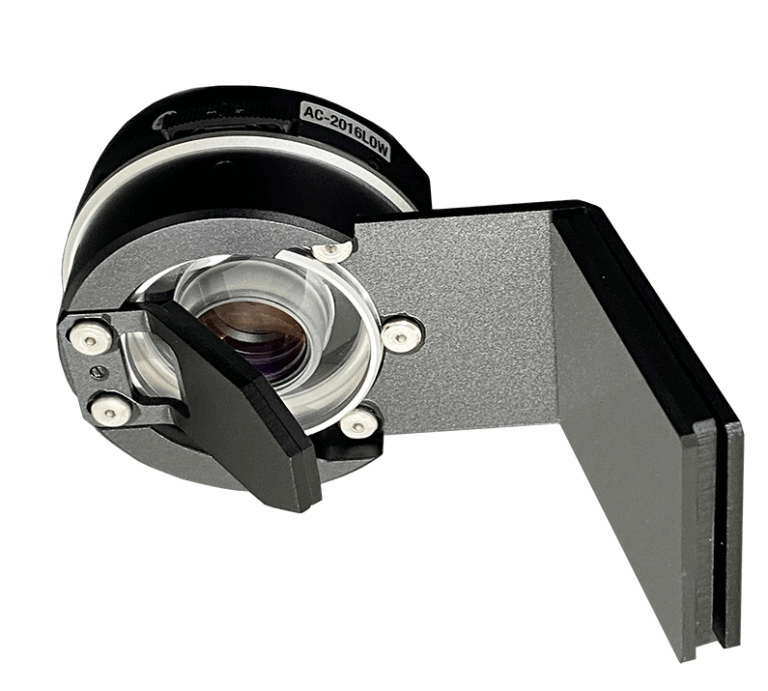

Low Magnification (0,3x) Adapter
Magnetic and Automatic Recognition
Magnification: 6x to 48x
Lighting Method: Dark field vertical lighting
Working distance: 135 mm
Magnetic and Automatic Recognition
Magnification: 6x to 48x
Lighting Method: Dark field vertical lighting
Working distance: 135 mm
Polarizing Adapter (with sliding filter)
Magnetic and Automatic Recognition
Lighting Method: Polarizing Filter Lighting
Working Distance: 31 mm
Magnetic and Automatic Recognition
Lighting Method: Polarizing Filter Lighting
Working Distance: 31 mm
