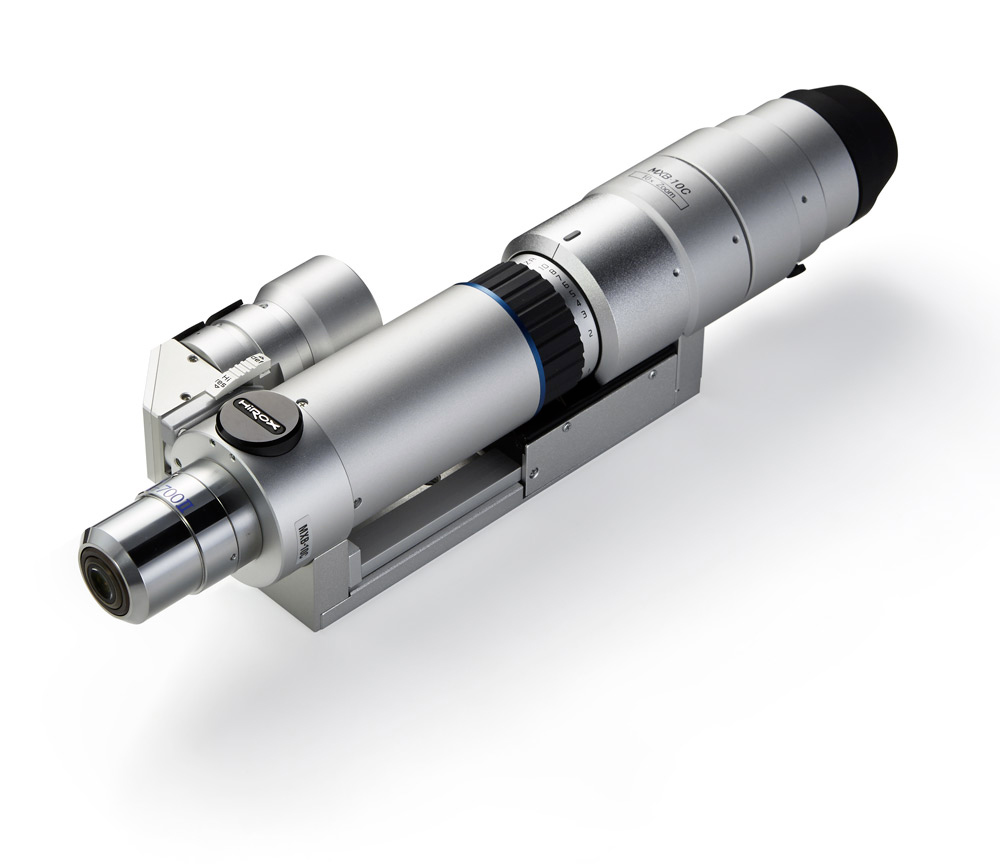

High-Range Zoom Lens
MXB-10C
35x up to 10,000x Magnification
High Resolution 10x Co-Axial
The high range optical zoom lens incorporates high expandability and the highest resolution in the MXB series.
With six interchangeable objective lenses, the lens covers a magnification range of 35x-10,000x.
A directional lighting adapter is provided for co-axial vertical lighting to achieve intricate optical observation.
| Objective Lens | OL-35 | OL-70II | OL-140 | OL-140II | OL-350II | OL-700II | OL-1000 |
|---|---|---|---|---|---|---|---|
 |  |  | |  |  |  |
|
| Magnification | 35-350x | 70-700x | 140-1400x | 140-1400x | 350-3500x | 700-7000x | 1000-10000x |
| Working Distance | 34 mm | 21 mm | 30.5 mm | 12 mm | 10.6 mm | 3.4 mm | 1 mm |
| Horizontal View | 9.83 - 1.05 mm | 4.42 - 0.47 mm | 2.46 - 0.26 mm | 2.21 - 0.23 mm | 880 - 90μm | 400 - 40μm | 300 - 30μm |
| Lighting Method | |||||||
| ACS Function | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Adapters
Included with the lens:
Directional lighting adapter
Fixed iris adapter
Variable iris adapter
Center iris adapter
Co-Axial polarizing adapter
Single wave length adapter
External side lighting adapter
Optical rotary adapter
Dark Field Light Ring Adapter
(using main unit fiber cable)
Lighting Method: Ring Lighting Adapter
Weight: 108g
Compatible with OL-35, -70Ⅱ, -140Ⅱ, -350Ⅱ Lens.
